PCB Clone

PCB Clone Manufacturing:

Are you interested in learning about PCB cloning and the benefits it can offer? With the help of modern technology and its advancement, Printed Circuit Board (PCB) cloning has become an efficient and cost-effective way of manufacturing.

PCB cloning involves replicating the same design and features of an existing board to provide a cost-effective alternative. In this article, you'll find out everything you need to know about PCB cloning, including its benefits and legal boundaries.

Read along and learn why PCB cloning is invaluable for many professionals and industries.

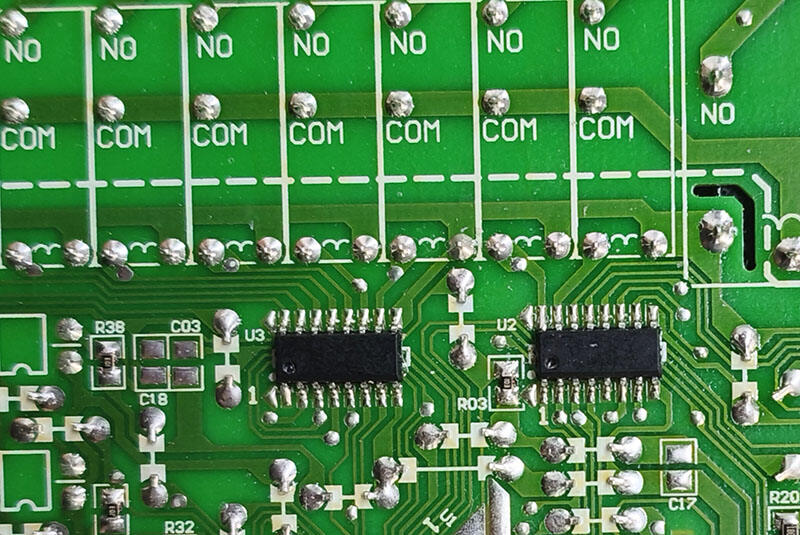

A PCB clone is a precise replication of the exact details of an existing PCB design. The PCB cloning process involves copying the features and specifications of a particular PCB, the product of which is called a PCB clone, also known as a PCB copy board, PCB board copy, circuit board clone, PCB duplication, or PCB reverse development. Electronics manufacturers use them to produce high-quality electronic components quickly and cost-effectively.

This technology has become increasingly popular in recent years, allowing companies to produce identical copies of PCB circuits and components without designing and manufacturing them from scratch. It is usually done by analyzing and studying the electronic circuit based on the information provided in a manufacturing file, including its circuit board layout, schematic, and components.

Steps for Successful PCB Cloning

PCB cloning can be a complex process that requires careful planning and precision to get the desired results. It is a reverse engineering technology process that uses existing PCB boards to create replicas. Here are the detailed steps you need to know when cloning a PCB.

Step 1: Understand the Electrical Parameters of the Original Board

Before starting PCB cloning, clearly understand the target design and project requirements. Obtain the BOM and schematic, which show component connections and electrical parameters. Schematics can be sourced from the manufacturer, repair manuals, or online repositories such as GitHub. Carefully review the schematic to understand component interconnections and ensure an accurate PCB clone.

Step 2: Determine Components and Layout

Take photographs of every layer of the board. Using a digital camera, take multiple pictures of every layer of the board from various angles if possible. Keep track of all components on the board, including the type, parameters, and positioning. Pay special attention to the direction of diodes, triodes, inductors, transistors, and integrated circuit chips.

Step 3: Prepare the Board for Scanning

Carefully remove all surface-mounted components and mechanical connectors, such as sockets and terminals. Clean the PCB board surface with alcohol and place it into a scanner. Make sure to raise some scanned pixels slightly to get a clear image.

Step 4: Scan the Top and Bottom Layers

Scan the PCB in color to capture all markings, lightly polish both sides to expose copper, then rescan the top and bottom layers separately. Adjust contrast, repair defects, convert them to black and white, and save the images as TOP.BMP and BOT.BMP.

Step 5: Create a New Design File of PCB Clone

PCB file formats are essential in electronic design, with Gerber and CAD being the most common. In this process, BMP images of the top and bottom layers are imported into PCB design software and converted into CAD PCB files. The top and bottom layers are traced separately, components, pads, and vias are verified, and both layers are combined into one design. The final top and bottom layers are printed at a 1:1 scale on transparent film.

Gerber files are widely used and manufacturer-friendly, while CAD formats store more complete design data in a single file. The choice depends on project and manufacturing needs.

Step 6: Verify the New Design File

Place the printed film on the PCB to verify accuracy. Before fabrication, carefully review the cloned design to ensure all components, footprints, connections, spacing, and labels are correct. Then check the PCB layout for proper routing, clearances, layer settings, and trace widths. A thorough review ensures accurate fabrication and a successful PCB.

Step 7: Submit the Files for Manufacturing

Once the design files are ready, generate the complete PCB layout files, including layers, components, drill data, and outlines. Carefully check for errors or discrepancies and include all necessary information to ensure the manufactured clone accurately matches the original PCB.

Step 8: Confirm the Order for PCB Clone Manufacturing

Send the design files and any supporting documents to the PCB manufacturer. Review the estimate, confirm the order, double-check specifications, and accept the service terms. After payment, the manufacturer will begin production.

Step 9: Receive and Test the PCB Clone Prototype

After receiving the PCB clone prototype, test and inspect it to ensure it meets standards. Visually check size, shape, color, components, and soldering, then perform electrical tests (continuity, power, signal integrity, thermography) and simulations. Compare results with the design, fix any issues, and properly package the PCB for delivery.

Step 10: Final Production Run

After the prototype has been successfully tested and all necessary modifications have been made, it is time to begin the final production run. recheck the design parameters and specifications before starting the production run to ensure the desired results.

PCB cloning involves choosing materials, inspecting quality, and performing tests. The process can take several days, and the finished clone is shipped safely and efficiently.
